SKU:135817
Securit Brass Butt Hinge
Securit Brass Butt Hinge
Regular price
£64.49
Regular price
Sale price
£64.49
Delivery calculated at checkout.
UK delivery £4.99, 2 to 4 working days. Free standard delivery on orders of £60 or more. Orders placed by 12:00 on a working day are normally dispatched the same or next working day. 30-day returns. Delivery · Returns
Quantity
Only 4 left in stock

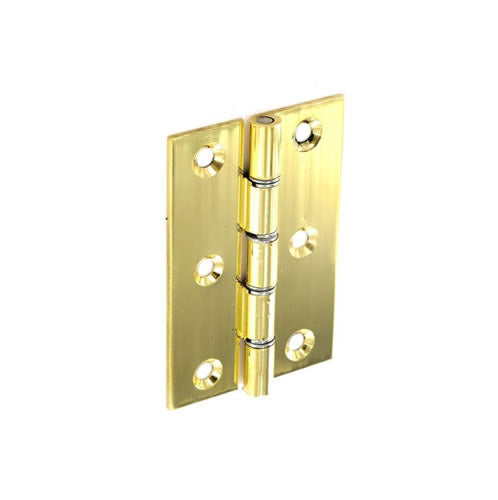

A pack of 20 Securit brass butt hinges, 75 x 50mm, for hanging internal wooden doors, cabinet doors and cupboard doors. Buying them as a pack of 20 covers several doors at once.
Key features
- Brass finish
- Butt hinge design, fitted into recesses in the door edge and frame
- For wooden doors
- Pack of 20 hinges
Specifications
- Brand: Securit
- Size: 75 x 50mm (length x open width)
- Pack: 20
- Manufacturer code: B4101
Choosing hinges
Match the size of the hinges you are replacing so they fit the existing recesses. Most internal doors are hung on two hinges; heavier doors and fire doors need three, and fire doors need hinges rated for fire door use. Screws are not included unless shown on the pack.
Fitting
- Mark the hinge position on the door edge, usually about 150mm from the top and 225mm from the bottom.
- Chisel a recess to the depth of the hinge leaf so it sits flush.
- Drill pilot holes and fix with screws that fit the countersunk holes.
- Hang the door and check it swings freely before fitting all the screws.
